Quarter-Duty-OBA
Product Code: 10002
Disponibilidad del producto: producto en existencias
Only 1 left

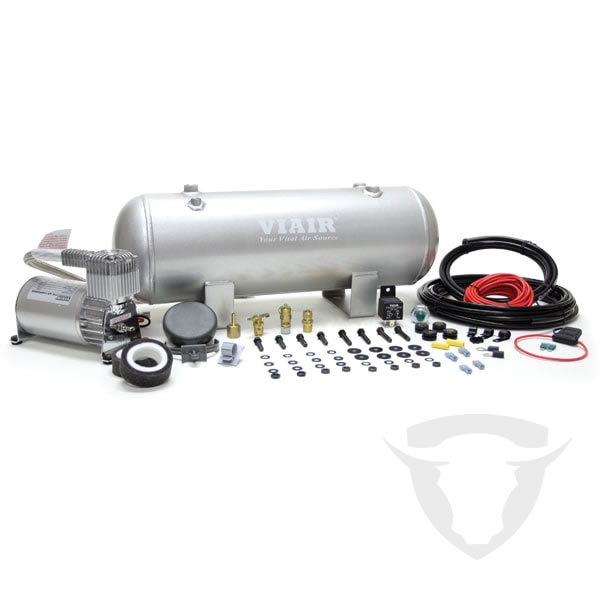

ON BOARD SYSTEM 2 GAL

Quarter Duty Cycle Onboard Air System is a smaller, 120 psi onboard air system, suitable for many pneumatic needs, including smaller inflation tasks (not including the inflation of automotive tires), air horns and more. The 25% Duty Cycle Onboard Air System will provide enough service time to operate for about 10 minutes of continued use, providing you give the system 30 minutes to cool down afterwards.

Please Note: Use thread sealant for proper installation. Teflon tape is not recommended.
Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs.
Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.



FEATURES
– 2.0 Gallon VIAIR Air Tank
– 275C VIAIR Air Compressor
– Pressure Switch (90 PSI on, 120 PSI off)
– 40-amp Relay
– 145 PSI Safety Valve
– 1/4” Drain Cock
– 1/4” Compression Fitting
– 20ft. 12 Gauge Wire with Inline Fuse Holder
– Accessory Airline
– Electrical Connections
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 25% @ 100 PSI
– Max. Working Pressure: 120 PSI
– Max. Amp Draw: 18 Amps
– Ingress Protection Rating: IP54

All Fittings are NPT rated unless otherwise noted.




PERFORMANCE DATA

<td st

PSI CFM A BAR LPM A
0 2.03 10 0 57.5 10
10 1.17 12 1.0 32.0 13
20 1.11 13 2.0 30.0 14
30 1.04 15 3.0 28.5 16
40 1.01 15 4.0 26.5 16
50 0.97 16 5.0 24.5 17
60 0.92 16 6.0 22.5 17
70 0.88 17 7.0 21.5 18
80 0.83 17 8.0 20.0 18
