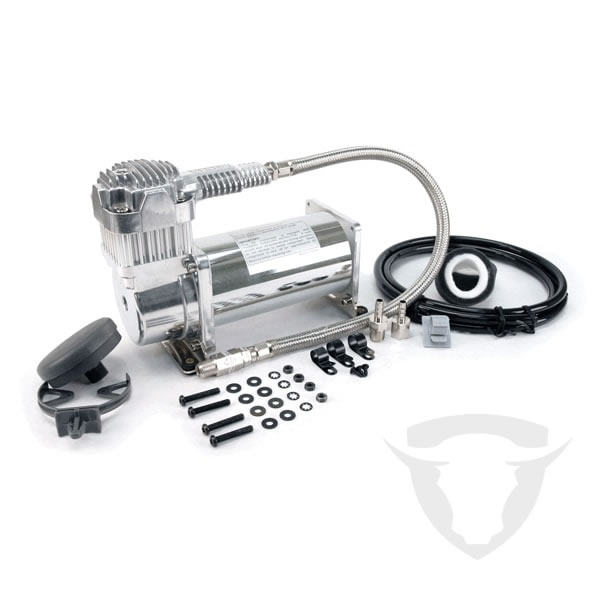

380C is a truly-rated continuous duty, 12-volt, 200 PSI compressor. It is capable of filling a 5.0-gallon tank from 165 PSI to 200 PSI in 3 1/2 minutes consistently, while never pulling more than 23 amps of power (@ 13.8 volts). Features include a standard 1/4” stainless steel braided leader hose with 1/4” NPT inline check valve and insulated wiring.
Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
| FEATURES |
|---|
| – Check Valve |
| – Vibration Isolators |
| – Mounting Hardware |
| – Stainless Steel Braided Leader Hose |
| – Air Line for Remote Mount Air Filter |
| – Remote Mount Air Filter Assembly |
| – (2) Replacement Air Filter Elements |
| – Installation Instructions |
| – |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI) |
| – Max. Working Pressure: 200 PSI |
| – Max. Air Tank Size: 5.0 Gallon |
| – Max. 12V Amp Draw: 23 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 9″L x 4″W x 6.75″H |
| – Net Weight: 8.75 lbs. |
| RECOMMENDED COMPONENTS | |||||
|---|---|---|---|---|---|
| – 2.5 Gallon Tank (P/N 91025) | |||||
| – 12V Relay (P/N 93940) | |||||
| – Pressure Switches (All P/N’s) | |||||
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.58 | 12 | 0 | 44.7 | 12 |
| 10 | 1.45 | 13 | 1.0 | 38.1 | 13 |
| 20 | 1.22 | 14 | 2.0 | 33.3 | 15 |
| 30 | 1.17 | 15 | 3.0 | 30.6 | 16 |
| 40 | 1.09 | 16 | 4.0 | 29.1 | 17 |
| 50 | 1.06 | 17 | 5.0 | 27.1 | 18 |
| 60 | 1.02 | 17 | 6.0 | 25.3 | 19 |
| 70 | 0.97 | 18 | 7.0 | 24.0 | 20 |
